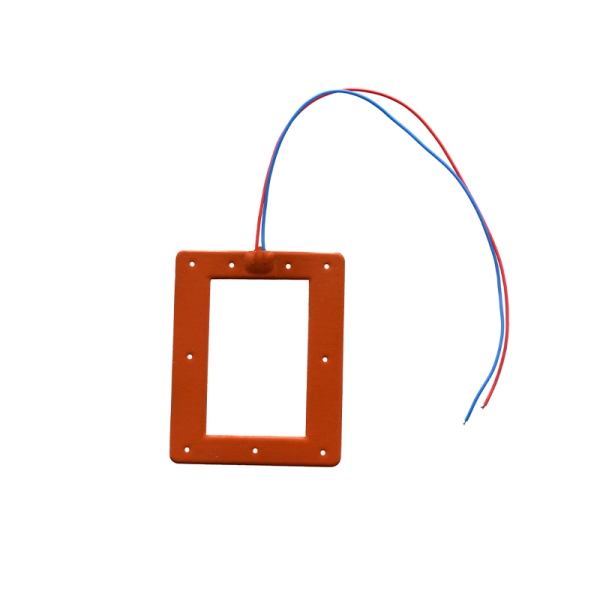

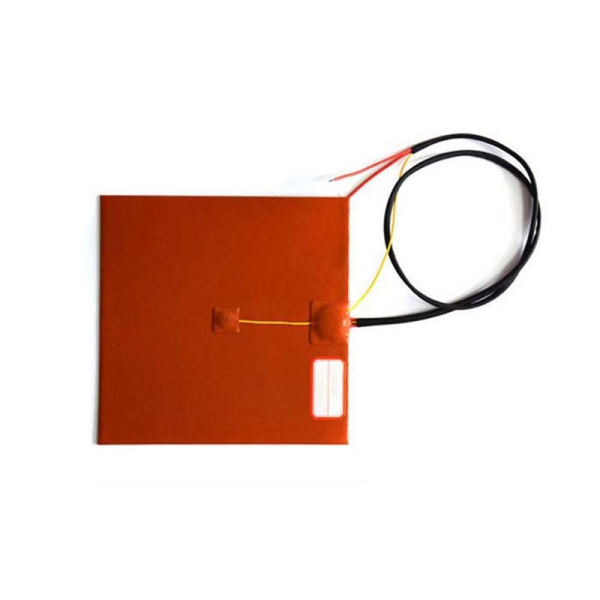

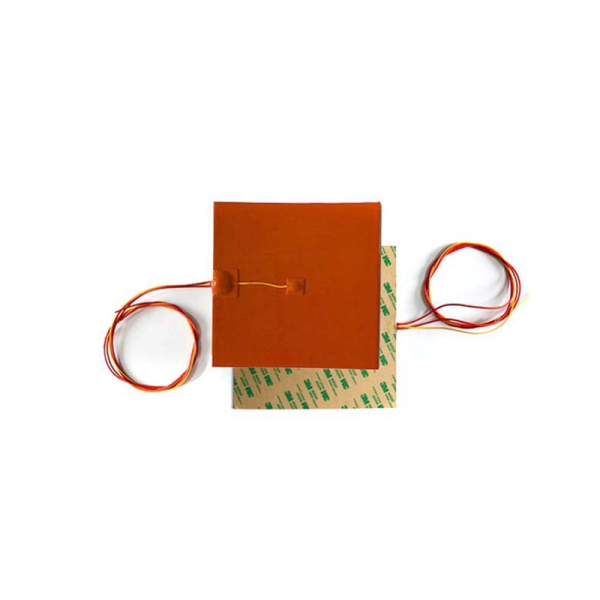

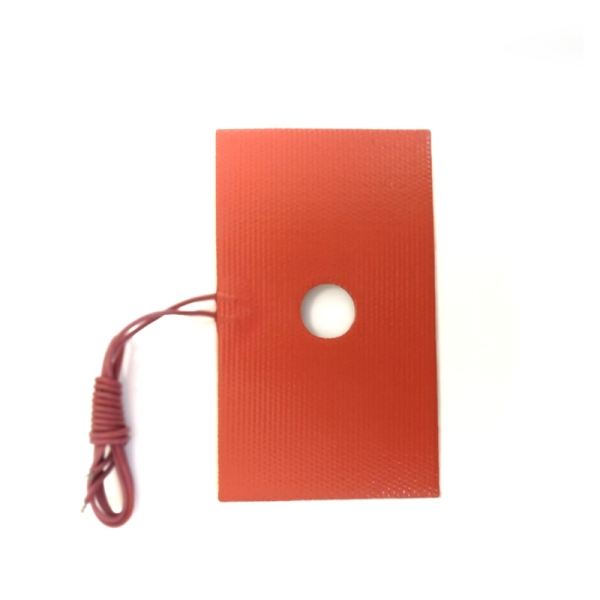

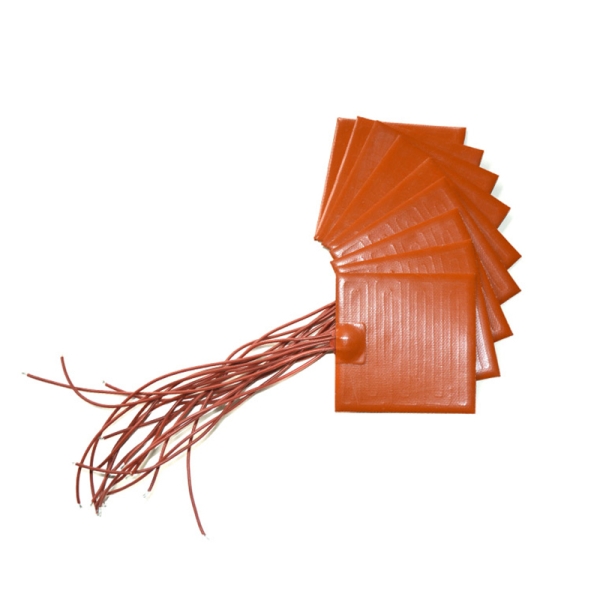

3D printer silicone rubber heater is a high-efficiency heating device designed for 3D printing equipment. It is mainly used to heat the printer's working platform or print bed to ensure that the printing material can maintain a suitable temperature during the printing process. This heater uses silicone rubber as the outer layer material, and is embedded with evenly distributed heating elements inside. It has good flexibility, uniform heating, and rapid heating. Its stable temperature control function can effectively prevent the warping and deformation of the printing material, ensuring the high precision and quality of 3D printed works.

1. Fast heating The silicone rubber heater is embedded with high-efficiency heating elements inside, which can quickly heat up to the required temperature range in a short time, improve 3D printing efficiency, and reduce preheating time.

2. Uniform temperature The heating elements of the heater are evenly distributed to ensure that the temperature of the entire print bed remains consistent, effectively avoiding local warping or poor deformation of the printed part due to uneven temperature.

3. Flexible design The flexible silicone rubber material can fit tightly to the surface of the printing platform. Even on irregular or shaped heating surfaces, it can maintain excellent heat conduction and enhance heating efficiency.

4. High temperature resistance The silicone rubber material has excellent high temperature resistance. The normal operating temperature range is -60°C to 250°C. It is suitable for 3D printing needs of various materials and can work stably for a long time.

5. Customized size and shape The silicone rubber heater can be customized according to the size and shape requirements of different 3D printer platforms to ensure that it is suitable for various types of 3D printing equipment and provide flexible applications.

6. Energy saving and high efficiency The silicone rubber heater has good thermal conductivity, can efficiently utilize energy, reduce heat loss, and save energy costs while achieving rapid heating.

7. Safe and reliable The heater has excellent electrical insulation performance, which can ensure safety under high temperature working conditions and avoid short circuit or leakage problems. In addition, it can also be used in conjunction with the temperature control system to further improve the safety and service life of the heater.

FDM/FFF 3D printers Silicone rubber heaters can be used to heat the print bed of FDM (fused deposition modeling) or FFF (fused filament fabrication) 3D printers to ensure that the printing materials (such as PLA, ABS, PETG, etc.) are not affected by the external ambient temperature during the printing process, thereby improving the printing quality.

Large-size 3D printing equipment In large-size 3D printers, the printing platform area is large and requires uniform heating. The uniform heating characteristics of silicone rubber heaters can provide reliable temperature control for large platforms and avoid printing failures caused by platform temperature differences.

Industrial 3D printers Industrial 3D printers often need to handle higher temperature printing materials (such as nylon, polycarbonate, etc.). Silicone rubber heaters can maintain stable heating performance at high temperatures to ensure printing quality in industrial applications.

• Heater size: customizable to suit the print bed size of different 3D printers

• Operating temperature: -60°C to 250°C

• Heating power: adjustable according to size and demand, usually 100W to 1000W

• Voltage: 12V, 24V, 220V and other specifications are available

• Temperature control method: can be used with a thermostat to support precise temperature adjustment

• Insulation resistance: >100MΩ (500V test)

• High temperature resistant material: silicone rubber outer layer, built-in nickel-chromium alloy heating wire

1. Temperature control: It is recommended to use a thermostat for precise temperature adjustment to avoid long-term over-temperature operation of the heater and ensure the safety of the equipment and printing materials.

2. Flat installation: During installation, ensure that the heater fits tightly to the printing platform to avoid gaps that affect the heating effect.

3. Regular inspection: It is recommended to regularly check the electrical performance and temperature output of the heater to ensure that the heater is in the best working condition for a long time.

3D printer silicone rubber heater is an efficient heating solution designed for 3D printing equipment. It can provide stable temperature support for the printing platform and ensure that the printing material remains in the best condition during the printing process. Its flexibility, uniform heating and rapid heating characteristics make it an important component of various 3D printers, especially FDM printers and industrial-grade printing equipment, significantly improving printing accuracy and finished product quality.
